electric resistance welded steel tube
"
Сформированная холодом трубка сваренная экстренныйым выпуском стальная, безшовный трубопровод квадрата структурной стали углерода
Cold-Formed Welded and Seamless Carbon Structural Tubing in Rounds and Shapes Size range: Square tubes O.D. :20-20 to 500-500 W.T.:1-24mm L:max12000mm Rectangle tubes O.D. :20-30 to 400-600 W.T.:1-24mm L:max12000mm Chemical Reuirement Element GradeA, b and D Grade C Heat Analysis Product Analysis Heat Analysis Product Analysis Carbon, max 0.26 0.3 0.23 0.27 Manganese,max 1.35 1.40 1.35 1.4 Phosphorus,max 0.035 0.045 0.035 0.045 Sulfur,max 0.035 0.045 0.035 0.045
Трубы нержавеющей стали 316/316Л Дя 4-1200мм ТОРИКХ сварили стальную трубку для жидкости ГБ/Т 12771
TORICH Diameter 4-1200mm Welded 316 / 316L Stainless Steel Pipes for Liquid GB/T 12771 SPEC: Material:304/304L 316/316L Diameter : 4-1200mm Wall thickness : 0.3-200mm Length : 2-12m Upon customer's request Tolerance: According to the following tables or customers’ request. Table 1 Tolerance of OD Classification D Permissible Tolerance A B H All Dimensions ±0.5% or ±0.20 ±0.75% or ±0.30 T ＜40 ±0.20 ±0.30 ≥40~＜65 ±0.30 ±0.40 ≥65~＜90 ±0.40 ±0.50 ≥90~＜168.3 ±0.80 ±1.00 ≥168.3~
Трубка Бунды стальной трубки тормозной системы сваренная одностеночная для холодильника
SAE J526 PVF/ Copper Coating Single Wall Bundy Tube For Brake System 1. Standard SAE J526 Welded low-carbon tubing EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems ASTM A254 Copper-brazed steel tubing 2. Steel Grade BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06 3. Heat Treatment BK or NBK 4. Specification O D/ mm 4 4.2 4.76 6 6.35 7.8 8 9.52 W T 0.5-1.0mm (0.5-0.7mm common WT) Tolerance ±0.05mm Length 180Kg/coil; 700-1000m/coil; per
Труба стены К195 ЭРВ стальной трубки небольшого диаметра сваренная толстая черная стальная для амортизатора удара
GB/T19793 Small Diameter Thick-Wall Q195 ERW Black Steel Pipe for Shock Absorber Application:Replace seamless tubes in subsequent cold drawing,Motorcycle Electric Vehicle Shock Absorber size:length--2~12m WT--2~4.5mm OD--16~50mm material:Q235 Q195 SPCC SPHC Production process: ordinary high-frequency welded pipe Advantages: small diameter and thick wall Surface Quality:The internal and external surfaces of the steel tube are not allowed to have cracks, scabs, folds,

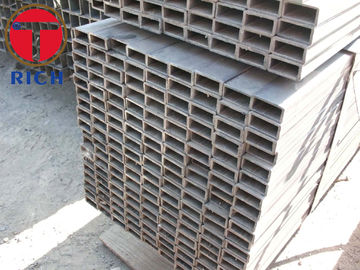

Неубедительный квадрат/прямоугольная сваренная стальная трубка Эрв/безшовная сталь углерода
ASTM A500 ERW Carbon Steel Gr B Gr C Hollow Square/Rectangular Steel Tube Pipe ASTM A500 ERW Carbon Steel Gr B Gr C Hollow Square/Rectangular Steel Tube Pipe Square Steel Tube Specifications: Thickness: 0.6-40mm Size: 20*20-600*600mm Material: Q195,Q215,Q235,Q345(B,C,D,E) Certification: ISO9001, BV, API, ABS Standard: ASTM GB DIN API IS EN BS Usage: Mechanical & manufacture, Steel structure, Shipbuilding, Bridging ,Automobile chassis Technique: ERW Packing: 1.Big OD: in bulk
Покрытая алюминием высасывающей системой трубка 127*1.5 сваренная 101.6*1.5 стальная
Torich Large Diameter 127*1.5 101.6*1.5 Exhaust System Aluminized Steel Pipe Introduction: Name Large Diameter Aluminized Steel Tube OD 5-420mm WT 0.5-50mm Length Max12m Usage Exhaust system for heavy truck, exhaust pipe Technics ERW Package Packing in hexagonal in wooden boxes or in woven bags MOQ 10 tons Shape Round The tubes shall be manufacturered in welded technics (ERW), and mainly used in the heavy truck exhaust system and exhaust pipes. Usually it is packed in the
Трубки К235 ТОРИКХ ГБ/Т 14291 сваренные К345 стальные для обслуживания жидкости шахты
Table 1 Outer Diameter,Wall Thicknes,Theoretical Weight and Test Pressure Norminal Outer Diameter(D)/mm Norminal Wall Thickness(S)/mm Theoretical Weight/(kg/m) Test Pressure/MPa Q235A,Q235B Q295A,Q295B Q345A,Q345B 21.3 2.5 1.16 15 15 15 21.3 3 1.35 15 15 15 21.3 3.5 1.54 15 15 15 25 2.5 1.39 15 15 15 25 3 1.63 15 15 15 25 3.5 1.86 15 15 15 25 4 2.07 15 15 15 26.9 2.5 1.50 15 15 15 26.9 3 1.77 15 15 15 26.9 3.5 2.02 15 15 15 26.9 4 2.26 15 15 15 31.8 2.5 1.81 15 15 15 31.8 3 2
Диаметр стальной трубки тормоза двойной сваренный стеной низкоуглеродистый небольшой для автомобилей
Brake Double Wall Low Carbon Steel Tube J527 B Small Diameter For Automobiles Copper brazed double wall steel tube is made of steel strips which is copper plated on both sides.It has widely applied for automobiles,refrigerators and the other hydraulic system industries. Dimension and specification O.D. mm Thickness mm Weight g/m Assurance pressure kg/cm3 4.76 0.7 70.28 350 6.00 0.7 91.76 350 6.35 0.7 97.75 350 7.00 0.7 108.75 350 7.14 0.7 111.17 350 8.00 0.7 126.31 350
Трубка твердости зазубрины сваренная стальная для обслуживания Астм А333 низкой температуры
TORICH ASTM A333 Low Temperature Service with Notch Toughness Welded Steel Pipe TORICH ASTM A333 Low Temperature Service with Notch Toughness Welded Steel Pipe Standard: ASTM A333, ASTM A370, ASTM A999/A999M, ASTM A671, E23, E165, E709 Size range: OD: 6-420mm WT: 1-50mm Length: 3-22m Material: Q195, Q215, Q235, Q345, Gr1,Gr3,Gr4,Gr6,Gr7,Gr8,Gr9,Gr10,Gr11 Test: Transverse or Longfitudinal Tensile Test and Flattening Test Impact Test Chemical Requirements Element Grade1 Grade3
