304 316 безшовных трубки теплообменного аппарата нержавеющей стали
Детали продукта
Бесшовные стальные трубы
,Безшовная пробка стали углерода

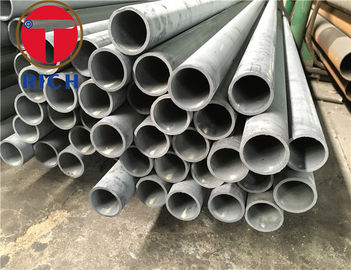

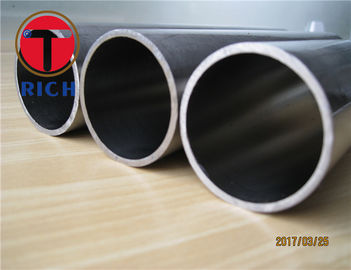

304 316 Бесшовные трубы для теплообменников из нержавеющей стали
Диапазон размеров:
ОД:6-159 мм
WT:1-14 мм
Длина: 3000-12000 мм
Характеристика:
Хорошая толерантность OD и ID, контролируемая в соответствии с техническим стандартом
Стабильное качество
Содержание и химический состав стали
| Число | Стальная категория | Химический состав % | ||||||||
| В | Да, да. | Мн | П | S | Ни. | КР | Мо | Ти | ||
| 1 | 0Cr18Ni9 | ≤ 0.07 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 8.00 ~ 1.00 | 17.00 ~ 19.00 | — | — |
| 2 | 1Cr18Ni9 | ≤ 0.15 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 8.00 ~ 10.50 | 17.00 ~ 19.00 | — | — |
| 3 | 1Cr19Ni9 | 0.04 ~ 0.10 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 8.00 ~ 12.00 | 18.00 ~ 20.00 | — | — |
| 4 | 00Cr19Ni10 | ≤ 0.030 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 8.00 ~ 12.00 | 18.00 ~ 20.00 | — | — |
| 5 | 0Cr18Ni10Ti | ≤ 0.08 | ≤ 1.00 | ≤3.00 | ≤ 0.035 | ≤ 0.030 | 9.00 ~ 12.00 | 17.00 ~ 19.00 | — | ≥ 5C |
| 6 | 1Cr18Ni11Ti | 0.04 ~ 0.10 | ≤ 0.75 | ≤ 2.00 | ≤ 0.030 | ≤ 0.030 | 9.00 ~ 13.00 | 18.00 ~ 20.00 | — | 4Xc~ 0.60 |
| 7 | 0Cr18Ni11Nb | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 9.00 ~ 13.00 | 17.00 ~ 20.00 | — | — |
| 8 | 1Cr19Ni11Nb | 0.04 ~ 0.10 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 9.00 ~ 13.00 | 17.00 ~ 20.00 | — | — |
| 9 | 0Cr17Ni12Mo2 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 11.00 ~ 14.00 | 18.00 ~ 20.00 | 2.00 ~ 3.00 | — |
| 10 | 1Cr17Ni12Mo2 | 0.04 ~ 0.10 | ≤ 0.75 | ≤ 2.00 | ≤ 0.030 | ≤ 0.030 | 11.0~ 14.00 | 16.00 ~ 20.00 | 2.00 ~ 3.00 | — |
-
Пробки автозапчастей ASTM A513 сваренные холодной прокаткой стальные с продукцией DOM
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
пробка безшовной стали светлой закалки диаметра 25mm для гидровлических систем
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
Трубка точности безшовная черная Фосфатинг стальная для гидравлических систем
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
Пробки DIN2391 EN103052 ST35.0 ST37 точности безшовные гальванизированные стальные
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
